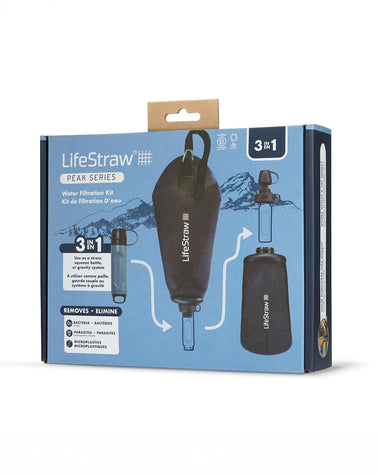

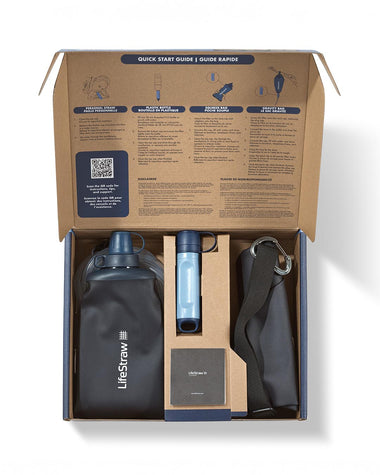

LifeStraw Peak Series 3-in-1 Kit

The Peak Series membrane microfilter lasts up to 500 gallons (2,000 liters). This filter is designed to stop working (meaning water will no longer flow through) once it has reached the end of its lifetime.

Connecting to a reservoir - Peak Series Gravity System (3L & 8L)

1. Disconnect. Open the top cap of the LifeStraw Peak Series Collapsible Squeeze Bottle Water Filter System by unscrewing from the body. Remove the filter for use with the new system.

2. Attach. Attach the filter to the LifeStraw Peak Series 3L Gravity Water Filter System by screwing the bottom onto the outside of the neck cap. To do so, make sure the plug cap is already removed from the gravity system. To attach the filter to the LifeStraw Peak Series Gravity Water Filter System - 8L, screw the bottom of the filter to the outside of the cap after first disconnecting the plug cap.

3. Connect. Connect a hose to the end of the filter by attaching to the open end.

4. Ready to Use. Now that your filter and hose are connected, you can let water flow directly out of the filter using gravity. When finished, simply swap the hose out for a plug cap to close off the gravity system until later use.

5. Backwash. When you are finished using, backwash your filter using the backwash syringe to remove excess water inside the filter. Close the caps.

Connecting with the Peak Series Personal Water Filter Straw

1. Unscrew. Open the bottom cap of the LifeStraw Peak Series Personal Water Filter Straw by unscrewing from the body.

2. Disassemble. Remove the filter from the Peak Series Collapsible Squeeze Bottle by unscrewing from the top cap. Remove the mouthpiece from the top cap and store somewhere secure.

3. Connect. Attach your LifeStraw Peak Series Personal Water Filter Straw to the top cap by screwing bottom of the filter into the now open top cap where the mouthpiece sits.

4. Fill. Open the neck cap of the squeeze bottle. Fill with water.

5. Ready to Use. Now that your LifeStraw Peak Series Personal Water Filter Straw is attached, you can drink directly from the collapsible squeeze bottle by pulling in water.

6. Backwash. When you are finished using, blow air through the moutpiece to remove excess water inside the filter. Close the caps.

1. Disconnect. Unscrew the filter from the neck cap of the 3L gravity system.

2. Attach. Attach the filter to the LifeStraw Peak Series Collapsible Squeeze Water Filter System (650ml & 1L) by screwing the top into the inside of the top cap on the squeeze bottle.

3. Fill. With the cap still off, fill the squeeze bottle with water, closing the cap with connected filter when filled.

4. Sip or squeeze. Open the screw top cap. To sip, take 5 quick, strong pulls of water using the mouthpiece to get water flowing. To squeeze water out of the reservoir, simply apply pressure to the reservoir. Close the top cap when finished.

5. Backwash. When you are finished using, backwash your filter using the backwash syringe to remove excess water inside the filter. Close the cap.

1. Unscrew. Open the bottom cap of the LifeStraw Peak Series Personal Water Filter Straw by unscrewing from the body.

2. Disassemble. Remove the filter from the Peak Series 3L Gravity Water Filter System unscrewing from the neck cap. Store somewhere secure, along with the plug cap.

3. Connect. Attach your LifeStraw Peak Series Personal Water Filter Straw to the neck cap by screwing bottom of the filter into the now open top cap where the mouthpiece sits.

4. Fill. Open the neck cap of the gravity bottle. Fill with water.

5. Ready to Use. Now that your LifeStraw Peak Series Personal Water Filter Straw is attached, you can drink directly from the gravity bag by drawing in water, or hang using the attached straps until ready to use.

6. Backwash. When you are finished using, unscrew the filter from the gravity bag, and blow air through the moutpiece to remove excess water inside the filter. Close the caps.
